Sunburst

Use sunburst visuals to display up to three levels of hierarchical data in a circle format.

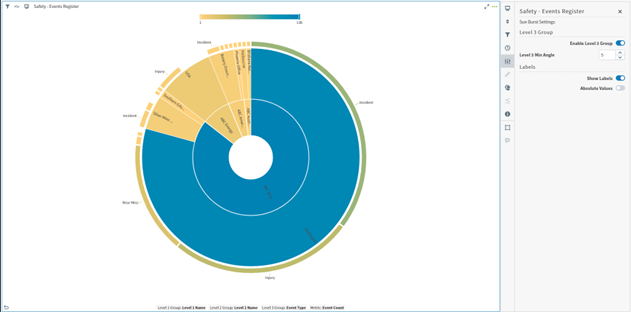

The topmost hierarchical data shown in the center of the sunburst, and the secondary levels are shown in levels further out from the center. You can include a third level of hierarchical data by enabling Enable Level 3 Group in the settings sidebar menu of the visual.

Sorting Data in a Sunburst Visual

Data in your visual is sorted Top of the Top if only two groups are included in the visual.

When you add a third group by enabling Enable Level 3 Group, simple sort is used instead.

Configure Colours for a Specific Sunburst

Specify the colour settings for a specific sunburst using the colour sidebar

1. Edit the visual you want to modify.
2. If you are editing the visual in a dashboard, select Settings from the visual drop-down menu.
   The sidebar menu for the visual appears. If you are editing the visual from the Visual Gallery, the sidebar appears to the right of the visual.

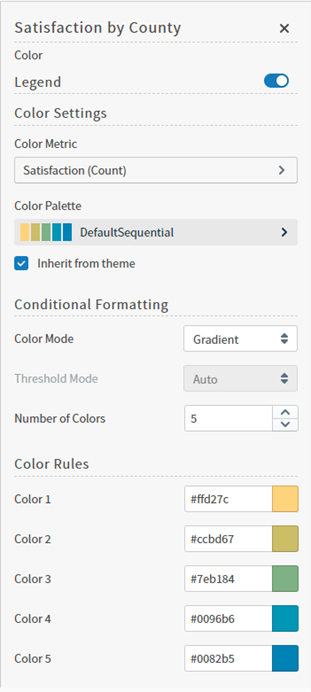

3. Select on the sidebar menu. The colour sidebar for the visual appears.

4. Configure the colour settings as described below. As you change the colour settings, the legend at the top of the Colour sidebar shows how the legend will appear on the visual.


   Setting	Description
   Legend	Enable or disable to display a dynamic legend in this visual. Dynamic legends allow you to temporarily add or remove data shown in the visual. For distinct colour styles, select a data point in the legend to turn it off and on in the visual. Use the colour selector to manually assign colours for legend items.
   Colour Metric	Select the metric that affects the segment colour in the visual. You can also define the default aggregation function used for the metric values: SUM, AVG, MAX, MIN, or (for some data sources) LAST VALUE.
   Colour Palette	If a colour palette is specified for this visual type in the data source defaults, select the colour palette for this specific visual. If a colour range is selected for KPI visuals in the data source defaults, this setting is not available. Select the Inherit from theme checkbox to use the colour palette specified by the theme.
   Colour Mode	Select Distinct Colours or Gradient to identify the way colours are used on the screen. Either specific distinct colours will be used or a gradient of colours will be used.
   Threshold Mode	If you selected the Gradient colour mode, this setting cannot be changed. If you selected the Distinct Colours colour mode, select either Auto or Manual from the drop-down list. Auto will automatically assign thresholds and colours for the visual. Manual allows you to change the thresholds and colours used on the visual.
   Number of colours	Specify the number of colours to use for the visual.
   Colour Rules	Colour rules allow you to change the colours for each colour used for the visual. In addition, if you specified a Manual threshold mode, you can select the thresholds used for colour settings in the visual.





5. Close the Colour sidebar and the colour settings are dynamically applied to the visual.
6. Select to save the dashboard and the visual with its updated settings.
