Change Visual Settings

You can change the settings for a visual. Visual settings can be changed using the Visual Settings sidebar. Settings can only be changed for some visual styles.

To access the Visual Settings sidebar:

1. Select the visual in the dashboard for which the settings will be changed.
2. Select the visual settings icon () on the sidebar menu for the visual. If there are no settings to modify for a specific visual style, the visual settings icon is disabled.

An appropriate visual settings sidebar appears. The one below is for a bar chart.

3. Adjust the settings as needed. See the description of the specific visual style for more information.

Adjusting the Data Zoom

Enable scroll options for visuals that previously did not include axis or zoom options. Depending on the visual type, the Data Zoom options may include horizontal, vertical, or both scroll options. This includes:

• Line Trend: Attribute Value Charts and Multiple Metric Charts
• Bar Charts
• Box Plot (vertical and horizontal)
• Combo Chart
• Donut
• Floating Bubbles
• Heat Map
• Pie
• Waterfall

Enable or disable as needed in the Data Zoom section of the Settings sidebar menu. Changes to the ruler used in a visual will reset the scroll settings, and the minimum and maximums are not saved.

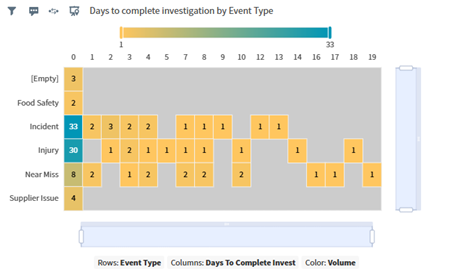

Using the data zoom bar:

• Adjust the zoom range bounds using the sizing handles (2)
• Drag the zoom range using the drag bar (1)
